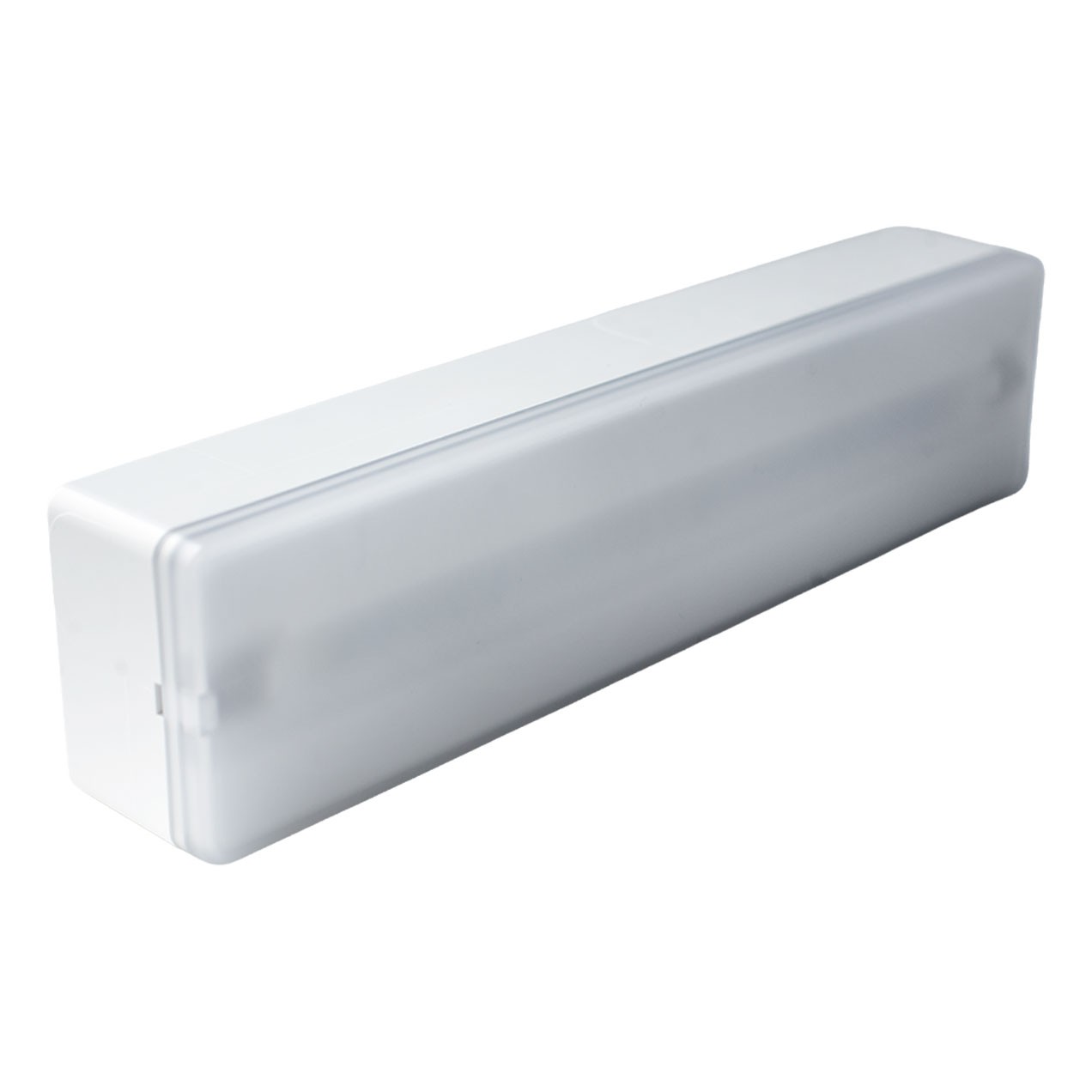

Series 15 - 60Lm IP44-IK04
Full description
The Series 15 emergency luminaire from Aerlux Iluminación is a compact and reliable solution for safety lighting in Mercadona installations. With a luminous flux of 60 lumens, it provides the necessary illumination to facilitate the evacuation of people in the event of a power supply failure, complying with the applicable safety regulations for commercial establishments.
The built-in LED technology ensures high energy efficiency and a long service life. The sealed high-temperature nickel-cadmium battery ensures the unit operates even under demanding conditions. The front LED indicator allows the mains supply status and battery charge level to be checked at all times, facilitating preventive maintenance tasks.
Mounting is carried out quickly and safely thanks to the pre-wired base, which considerably reduces installation time. The Class II housing eliminates the need for an earth connection, simplifying the wiring. Complies with standards UNE-EN 60598-2-22 and UNE-EN 60598-1, with CE marking and adapted to the RoHS directive.
Key features
- Luminous flux: 60 lm
- Protection: IP44 / IK04
- Battery: Sealed high-temperature Ni-Cd
- Autonomy: up to 1 hour
- Insulation class: II
- Power supply: 230 Vac / 50-60 Hz
- LED indicator for mains and battery status
- Installation via pre-wired base
- CE marking · RoHS directive
- Standards: UNE-EN 60598-2-22, UNE-EN 60598-1
