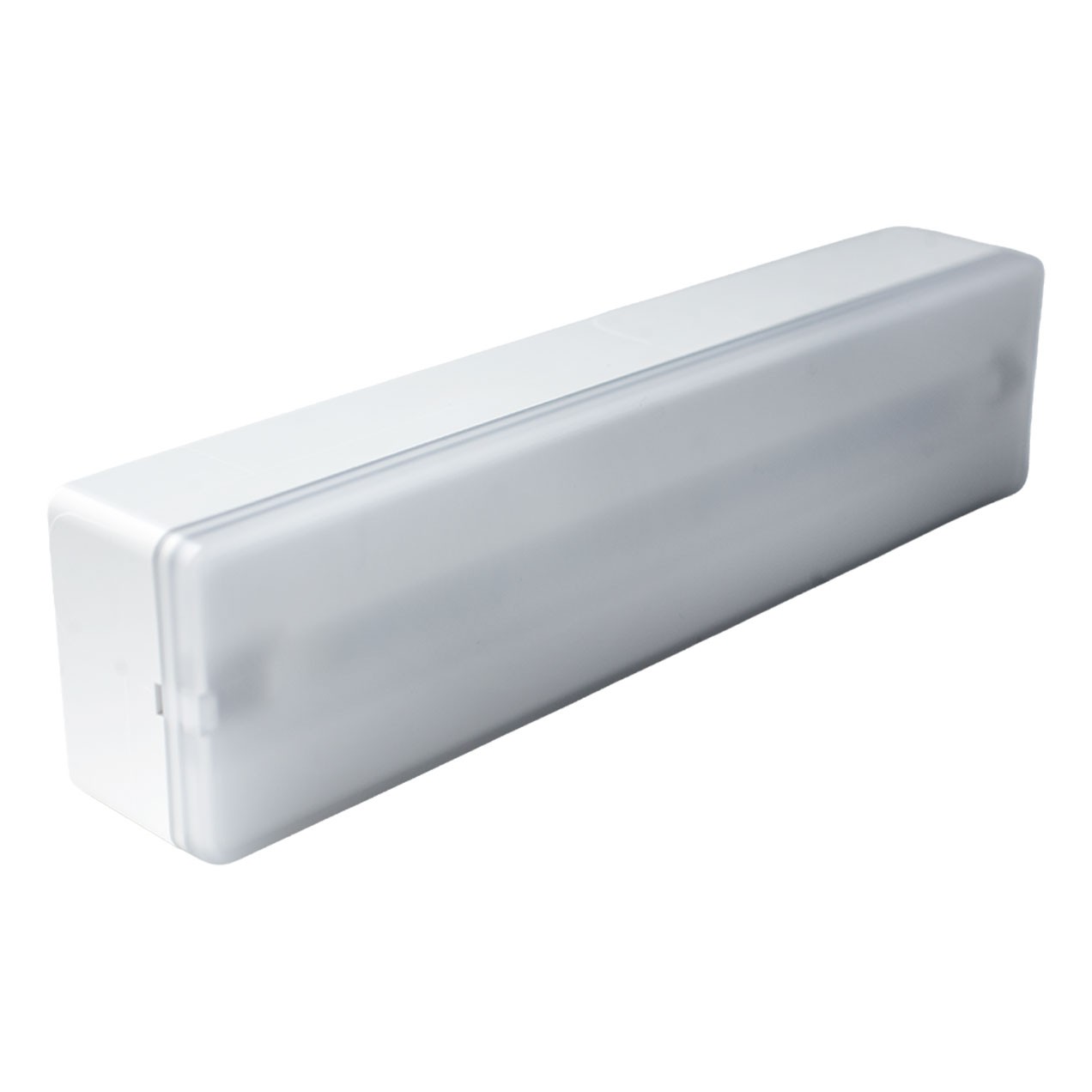

Series 15 - 170Lm IP44-IK04
Full description
The Series 15 emergency luminaire from Aerlux Iluminación offers in its 170-lumen variant greater luminous coverage for Mercadona installations with wide corridors or larger areas. With IP44-IK04 protection, it ensures emergency signalling in indoor spaces with the illumination levels required by regulations on evacuation routes.
The built-in LED technology ensures high energy efficiency and a long service life for the unit. The sealed high-temperature nickel-cadmium battery maintains operation even under adverse conditions, with sufficient autonomy to meet regulatory requirements. The front LED indicator allows the mains status and battery charge to be checked at any time.
Mounting is carried out quickly and safely via the pre-wired base, significantly reducing installation time. The insulation class II eliminates the need for an earth connection. Complies with standards UNE-EN 60598-2-22 and UNE-EN 60598-1, with CE marking and conforming to the RoHS directive.
Key features
- Luminous flux: 170 lm
- Protection: IP44 / IK04
- Battery: Sealed high-temperature Ni-Cd
- Autonomy: up to 1 hour
- Insulation class: II
- Power supply: 230 Vac / 50-60 Hz
- LED indicator for mains and battery status
- Installation via pre-wired base
- CE marking · RoHS directive
- Standards: UNE-EN 60598-2-22, UNE-EN 60598-1
